EQT  |  SKU: EQT-02A01X02A

EQT Vortex Turbocharger - VW/Audi MQB 1.8T/2.0T

$ 1,619.10

Shipping rates and applicable discounts are applied during checkout.


Size

- Standard


Description

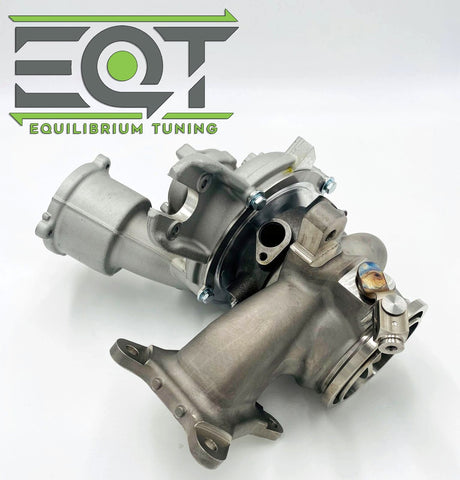

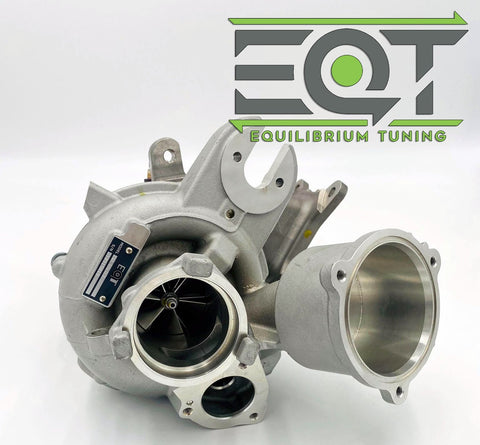

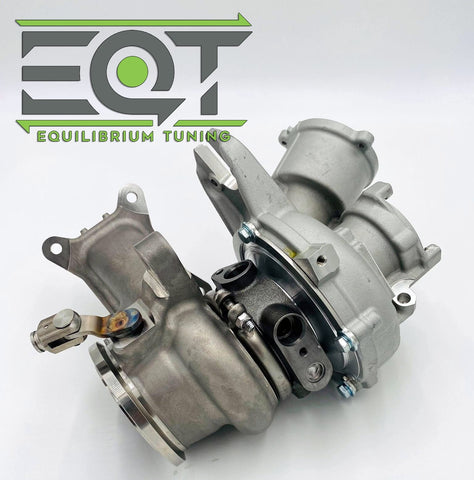

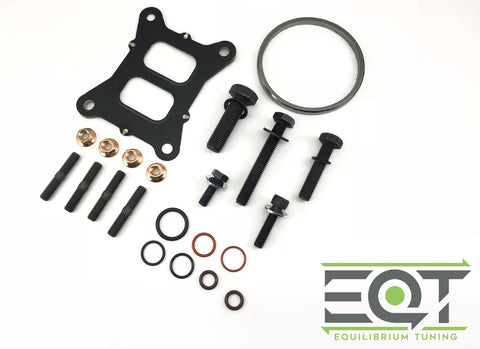

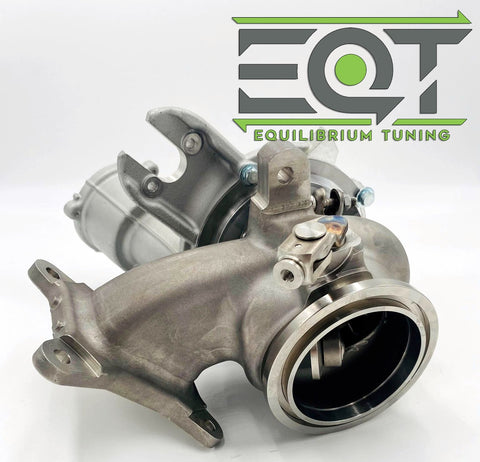

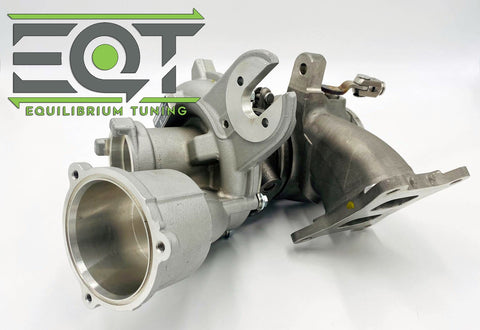

Our EQT Vortex is a complete bolt-on turbo that is manufactured with all brand new components and includes new installation hardware (pictured). The housings are modeled after the OEM IS20/IS38 turbochargers for proper fitment, but they are all brand new and original castings made and machined for the specific wheels we use. The turbine is a TD06SL2 wheel measuring at 61mm/54mm and the compressor is a custom billet wheel measuring at 53mm/71mm base with a 76mm extended tip design. The entire turbo is manufactured, assembled, and VSR balanced in a state of the art facility. The EQT Vortex is good for 450-480whp on pump gas and over 500-560whp on race gas or E85. Note that upgraded fueling and supporting mods are recommended to take full advantage of this turbo.

When developing this turbo upgrade, we were aiming for a good balance of response and overall power potential so that the turbo would be a pleasure to drive on the street as well as on track. As a result, the EQT Vortex offers excellent spool and response throughout the powerband along with a very flat torque curve that carries nearly to redline. We also sized this turbo to be a perfect match for the stock engine internals and control systems. The EQT Vortex makes excellent power in the 27-28psi range which allows it to work very well on pump gas and stay within range of the stock MAP sensors. Check out the dyno chart below which shows the EQT Vortex on 91 Octane and on an E30 blend as well as the same car on the stock IS38 turbo. The setup on the car remained exactly the same aside from the turbo kit and tuning. This test car still has the stock cat-back and a catted downpipe, so there is plenty more power to be had!



Below is a chart showing just how quickly the EQT Vortex can spool. This was done on the road in 4th gear (2015 Golf R DSG) on E30. You can see that the turbo hits 27psi right at 3000RPM and holds it to redline with ease. You can also see that the Intake Air Temperature barely moves through the entire pull. This shows how efficient the turbo is at these boost/power levels.



EQT Vortex XL

Building upon the success we had with the standard EQT Vortex, we now offer the Vortex XL model. The key difference in the Vortex XL is a larger turbine housing. While the standard EQT Vortex uses a turbine housing based on the IS20 turbo to achieve unrivaled spool, the Vortex XL uses a larger housing based on the IS38 to allow for more top end flow. The result is that the Vortex XL spools 300-400RPM slower, but offers an extra 20-40whp depending on fuel and setup. The XL can hit 30psi by 3400RPM and can hold up to 35psi all the way to redline!

With the Vortex XL, we have now seen up to 600whp along with low-mid 10 second 1/4 mile times. The Vortex XL turbo currently holds the 1/4 mile record for any IHI based bolt-on turbo for the MQB platform, while still being one of the best spooling options on the market. The record pass was a 10.46 @ 131.5mph and was accomplished at only 30psi on our stock motor and stock transmission shop car. Our car is still on the stock motor and transmission, but now its running 34-35psi and making around 40whp and 50ft-lbs more than it was at the time. We hope to see some very low 10's soon! Here's the current time slip and video of the record setting pass:

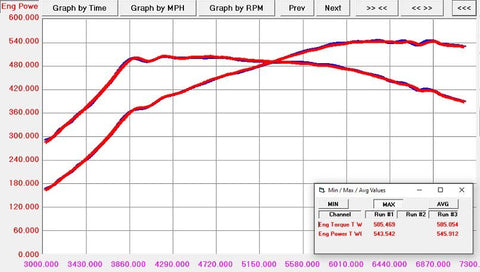

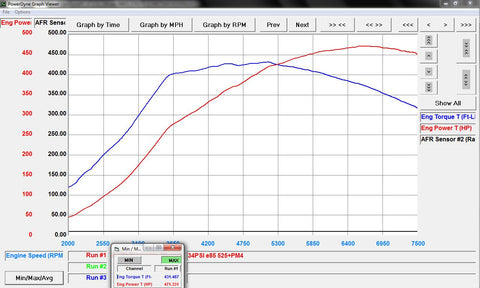

Here is the most recent dyno of our shop Mk7 R running the Vortex XL on E85 on a completely stock engine at 34psi. This is an aggressive tune for a stock engine, but we're still limiting torque to try to keep the internals together. Check out that flat torque curve! Besides being a daily driver, this car also gets abused regularly on the drag strip and the local road courses.


And here's a video of this car going from a stop to 140mph!

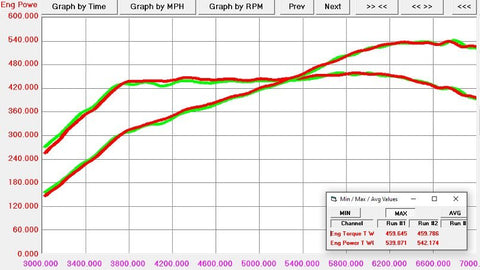

This quick 2019 Golf R from one of our customers has our Vortex XL Turbocharger, APR Intercooler, APR Intake, APR Catted Downpipe, Brushless LPFP, 925cc MultiPort Injection, and 4/5bar PUT/MAP sensor combo. We tuned the car on 91 Octane and E85 at 31-32psi peak using the Cobb AccessPort. This car is a bit limited by the downpipe and intake, but still makes excellent power with an amazing powerband!

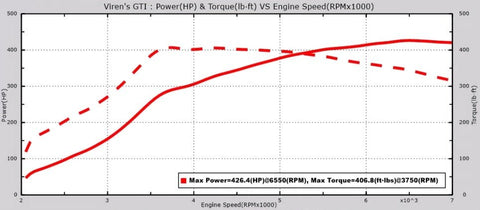

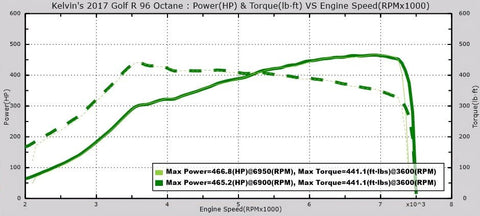

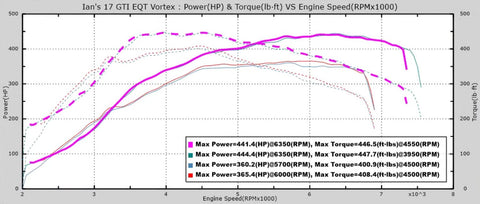

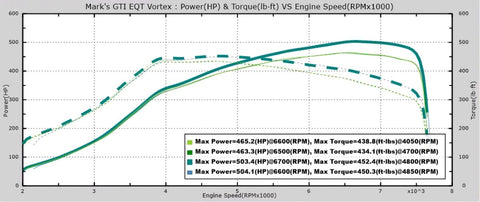

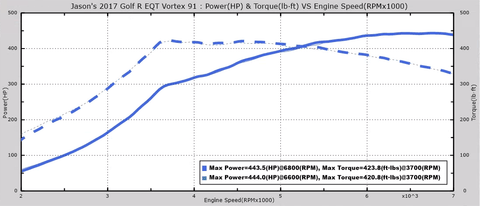

Please also check out the various dyno charts at the top showing different cars around the country running our Vortex turbos. These include GTI's and Golf R's from basic setups to full builds on various types of dynos. Additionally, you can find below a comparison of the stock is20 on e85 (Red graph) vs our Vortex XL on pump 93 (Blue graph) and also e85 (Green graph)!

EQT Turbo Discharge Pipe Kit

To compliment the additional flow of the EQT Vortex, we developed a package which includes the turbocharger, 2.5" turbo muffler delete, 2.5" turbo discharge pipe, and silicone hoses. This package allows the EQT Vortex to perform optimally and is highly recommended. Discharge Pipe Package can be added conveniently from this product page. Already have the turbo and just need the discharge pipe kit? Find it here!


Fitment: All VAG MQB (Mk7 GTI, Golf R, S3, A3, TT, TT-S, etc)





EQT Vortex: IS20 Hybrid

Our EQT Vortex is a complete bolt-on turbo that is manufactured with all brand new components and includes new installation hardware (pictured). The housings are modeled after the OEM IS20/IS38 turbochargers for proper fitment, but they are all brand new and original castings made and machined for the specific wheels we use. The turbine is a TD06SL2 wheel measuring at 61mm/54mm and the compressor is a custom billet wheel measuring at 53mm/71mm base with a 76mm extended tip design. The entire turbo is manufactured, assembled, and VSR balanced in a state of the art facility.

The EQT Vortex is good for 450-480whp on pump gas and over 500-540whp on race gas or E85. Note that upgraded fueling and supporting mods are recommended to take full advantage of this turbo.

When developing this turbo upgrade, we were aiming for a good balance of response and overall power potential so that the turbo would be a pleasure to drive on the street as well as on track. As a result, the EQT Vortex offers excellent spool and response throughout the powerband along with a very flat torque curve that carries nearly to redline. We also sized this turbo to be a perfect match for the stock engine internals and control systems.

EQT Vortex XL: IS38 Hybrid

Building upon the success we had with the standard EQT Vortex, we now offer the Vortex XL model. The key difference in the Vortex XL is a larger turbine housing. While the standard EQT Vortex uses a turbine housing based on the IS20 turbo to achieve unrivaled spool, the Vortex XL uses a larger housing based on the IS38 to allow for more top end flow.

The result is that the Vortex XL spools 200-300RPM slower, but offers up to an extra 10% gain in whp depending on fuel and setup over the Vortex Standard. The XL can hit 30psi by 3000RPM and can hold up to 36psi all the way to redline!

With the Vortex XL, we have now seen up to 600whp and a record setting 9 second 1/4 mile time. The Vortex XL turbo currently holds the 1/4 mile record of 9.956 @ 137.00mph for any IHI based bolt-on turbo for the MQB platform, while still being one of the best spooling options on the market. The record pass was accomplished by our customer George Dossantos' and his stock motor, stock transmission Audi S3.

EQT Vortex XL - 9sec 1/4 Mile run

Here is the latest record breaking video of our customer George Dossantos' very dialed in Audi S3 running our Vortex XL on E85 with a completely stock engine and transmission to a world first 9sec 1/4 mile pass. This is an aggressive tune for a stock engine, but we're still limiting torque to try to keep the internals together. Besides being a daily driver, this car also gets abused regularly on the drag strip.

EQT Vortex Turbos: What You Need To Know

Recommended Modifcations

Fueling

Fueling Upgrade requirements vary depending power goals.

Pump Gas:

- High Pressure Fuel Pump - REQUIRED

- Low Pressure Fuel Pump - Recommended

Ethanol:

- Low Pressure Fuel Pump - REQUIRED

- Multi-Port Injection - REQUIRED

Intercoolers / Intakes

Upgrading your Intercooler and Intake will allow you to maximize the performance of your new Turbo upgrade. Through extensive testing both from our shop car and customers, we recommend DO88 and Blaze Performance for these upgrades and have shown great results from both when combined with proper tuning and supporting modifications which can be found below!

Additional Mods

While most people will already have the basic Stage mods (Upgraded Intercooler, Intake, and Downpipe), there are a few items that will help you maximize the performance of your Vortex Setup!

Mods:

5 Bar TMAP/PUT Sensor Kit - Allows boost past 30psi stock sensor limit

Motor/Transmission/Dogbone Mounts - Help put the power down to the wheels

×
