PRODUCT DESCRIPTION:
The 034Motorsport 4 Bar MAP Sensors are designed to replace the factory 3 Bar MAP sensors on the EA839 2.9T/3.0T engine. These sensors are a required upgrade for 034Motorsport Dynamic+ Stage 3 Software. Included are two 034Motorsport 4 Bar MAP Sensors which plug directly into the OEM harness and are a direct drop-in replacement.
FEATURES:
- 4-Bar MAP Sensors Designed to Replace the Factory 3-Bar MAP Sensors on the EA839 2.9T/3.0T Engines
- Enables Calibrations Above the Factory MAP Sensor 3-Bar Limit
- Specific Software Calibration is Required to Utilize These Sensors
- Manufactured by an OE Supplier to 034Motorsport Specifications
- Sensors Plug Directly into the OE Harness
- Direct Drop-In Replacement of the Stock 3-Bar Sensors
FITMENT:
- 2019 - Present C8 Audi A6 3.0 TFSI
- 2019 - Present C8 Audi A7 3.0 TFSI
- 2019 - Present D5 Audi A8 3.0 TFSI
- 2020 - Present 4M.5 Audi Q7 3.0 TFSI
- 2017 - Present B9/B9.5 Audi S4 3.0 TFSI
- 2018 - Present B9/B9.5 Audi S5 3.0 TFSI
- 2018 - Present B9/B9.5 Audi SQ5 3.0 TFSI
- 2018 - Present B9/B9.5 Audi RS5 2.9 TFSI
OE PART INTERCHANGE:
- 06E 906 051 AB
- 06E 906 051 AG
- 06E 906 051 AC
WHAT’S INCLUDED:

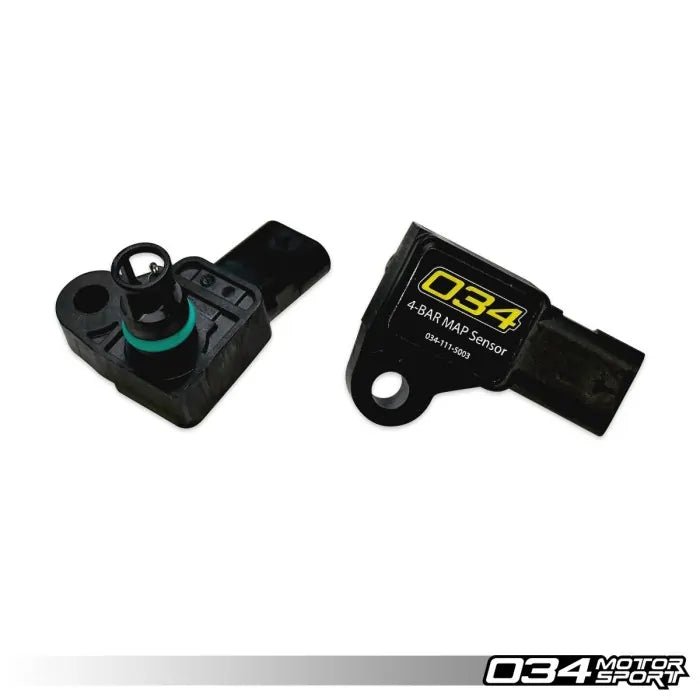

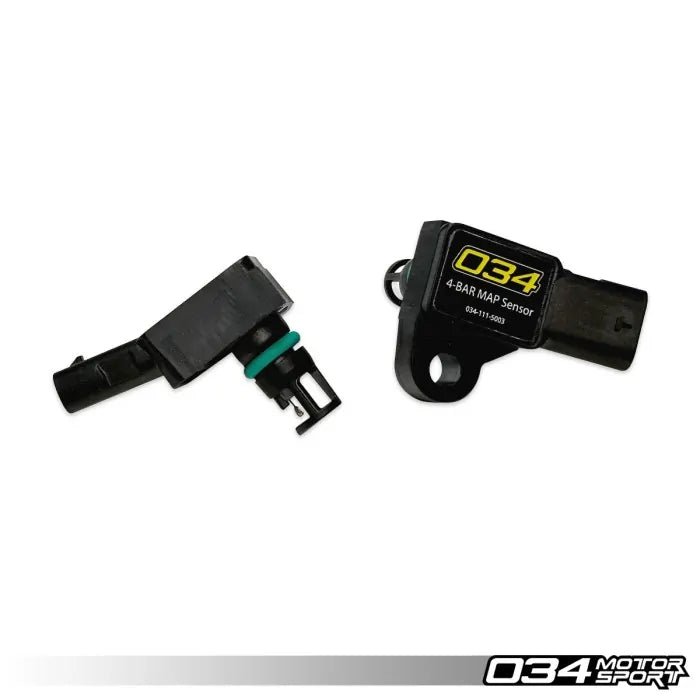

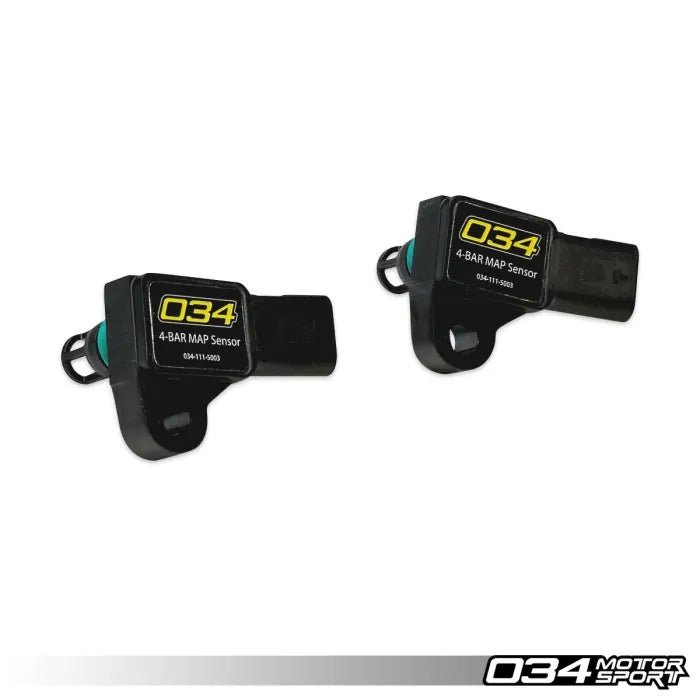

- 2x 4-Bar MAP Sensors
- Installation Hardware
