034Motorsport X-Clear Driveshaft Tunnel Brace (MQB)
This X-Clear Driveshaft Tunnel Brace is designed for FWD MQB and MQB Evo Vehicles
FWD: Includes Both Front & Rear Braces.
AWD: Includes Rear Brace. Front Brace is the Driveshaft Carrier.
PRODUCT DESCRIPTION:
The X-Clear Driveshaft Tunnel Brace is designed to increase clearance for aftermarket exhausts by replacing the shallow-fitting OEM tunnel brace. This allows for a larger diameter exhaust to be installed without causing excessive rattling or vibration.
The X-Clear Driveshaft Tunnel Brace replaces the factory brace with a CNC Machined Billet 6061-T6 Aluminum brace designed to increase exhaust clearance by 8mm over the factory.
FEATURES:
- Increased Stiffness Over OE Stamped Steel Part
- CNC Machined from Billet 6061-T6 Aluminum

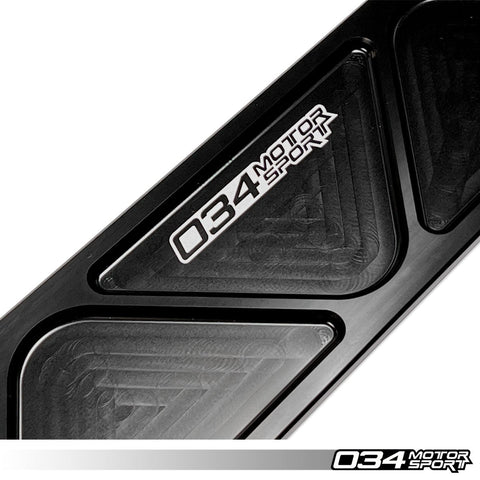

- Bright Black Anodizing, with Laser Etched 034Motorsport Logo
- Adds 8mm of Additional Clearance to Exhaust Compared to the OE Part, Allowing Larger Diameter (up to ½” diameter larger) Aftermarket Exhaust Installation
- Fast, Easy Installation
- No Added NVH

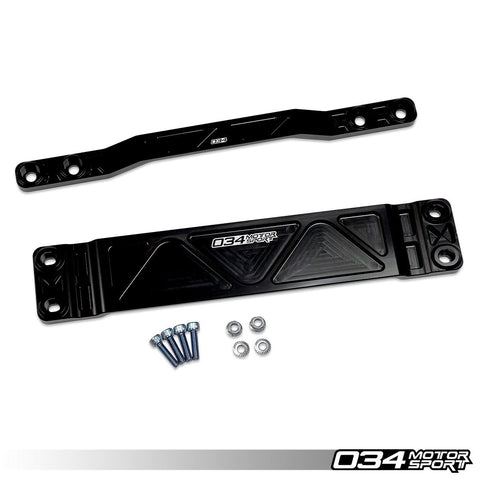

WHAT’S INCLUDED:
- Billet Tunnel Brace
- Mounting Hardware
OE PART INTERCHANGE:
- 5Q0 804 421 B
- 5Q0 802 128
FWD Fitment:
| Make | Model | Years | Chassis | Engine |
|---|---|---|---|---|
| Audi | A3 | 2015-2016 | 8V | 1.8 TFSI |
| Audi | A3 | 2015-2016 | 8V | 2.0 TDI |
| Audi | A3 | 2015-2020 | 8V/8V.5 | 2.0 TFSI |
| Audi | A3 | 2022-Present | 8Y | 2.0 TFSI |
| VW | Golf | 2015-2020 | Mk7/Mk7.5 | 1.8T Gen3 |
| VW | Golf | 2015-2016 | Mk7 | 2.0 TDI |
| VW | Golf SportWagen | 2015-2020 | Mk7/Mk7.5 | 1.8T Gen3 |
| VW | GTI | 2015-2020 | Mk7/7.5 | 2.0T Gen3 |
| VW | GTI | 2021-Present | Mk8 |
2.0T Gen4
|
AWD Fitment:
| Make | Model | Years | Chassis | Engine |
|---|---|---|---|---|
| Audi | S3 | 2015-2020 | 8V/8V.5 | 2.0 TFSI |
| Audi | S3 | 2022-Present | 8Y | 2.0 TFSI |
| VW | Golf Alltrack | 2015-2020 | Mk7/Mk7.5 | 1.8T Gen3 |
| VW | Golf R | 2015-2019 | Mk7/Mk7.5 | 2.0 TSI Gen 3 |
| VW | Golf R | 2021-Present | Mk8 | 2.0T Gen4 |
