The Ethanol Advanced gauges combine our patented DirectDigital™ O2 sensor control technology with application specific sensors, an OLED display, and a sophisticated ethanol content sensor that also measures fuel temperature. These capabilities allow the user to monitor and capture critical metrics for accurate and reliable tuning while operating with high ethanol content fuel. The Ethanol Advanced gauges offer the looks, safety, and performance enthusiasts demand!

If you don't like lot of gauges but need to monitor the vitals then the ECB-1 is the gauge for you with its Four-In-One Functionality, It can monitor boost beyond that of the stock ECU (4 bar), Ethanol Content, and AFR.

Utilizing the AFR Part will require an additional O2 bung to be welded into your downpipe.

You can set up your ECB-1 with a programmed alarm, the red LED illuminates if my Boost pressure exceeds my preprogrammed threshold but it can also be set to go off if your AFR hits a certain target that you set.

All features can be programmed with free software from Innovate. So if you want your Light to go off if the car starts to lean out above a certain boost pressure then you can give yourself a fighting chance at saving your engine.

Or if you just want to know Ethanol content and hide the gauge in a sneaky CJM Industries Coin Tray Pod check out the Innovate Motorsports MTX-D

Kit 3906 Includes the Ethanol Sensor, Kit 3911 does NOT.

  • Four-in-one, ethanol content percentage, fuel temperature, boost pressure, and wideband air/fuel ratio gauge
  • Boost Vision - a real-time calculated approximation of your ECU’s boost limit based on current ethanol content percentage
  • OLED user configurable display (one, two, or four channel viewing modes)
    • Ethanol %, Vacuum/Boost, Target Boost, Peak Boost, Fuel Temp, Air/Fuel ratio
    • °F or °C, AFR or Lambda, inHG, PSI, kPa, or BAR
    • On screen error reporting for ethanol content sensor and wideband O2
  • Warning indicator LED when actual boost exceeds target boost (user programmable)
  • Peak hold function
  • 4 BAR map sensor, pressure range -29 inHG to 43.5 PSI (-1 to 3 BAR)
  • 3-Configurable analog outputs for use with standalone and other programmable ECU’s as well as external data loggers
    • Ethanol Content: 0v = 0%, 5v = 100%
    • Fuel Temp: 0v = -40 °F, 5v = 257 °F (-40-125°C)
    • Wideband Air/Fuel Ratio: 0v = 7.35, 5v = 22.39 AFR (0.50-1.52 Lambda)
  • Pressure readings can be adjusted for altitude differences
  • 52mm (2 1/6”) diameter gauge body with interchangeable faceplates and bezels: Black and silver bezel, black and white faceplates included
  • No PC required for configuration
  • Bosch LSU 4.9 wideband O2 sensor
  • Patented DirectDigital™ wideband sensor control, 100% digital wideband air/fuel ratio technology!
  • Wideband O2 Compatible with several fuel types (Leaded, Unleaded, Diesel, E85 & more)
  • Ability to calibrate O2 sensor for maximum accuracy
  • Innovate MTS serial in/out (for use with other Innovate & 3rd party MTS enabled devices to add additional logging channels)

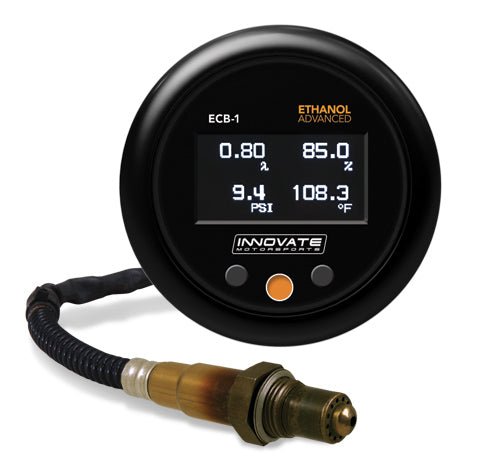

Innovate Motorsports ECB-1: Ethanol Content, Boost, Wideband O2 Gauge Kit
